Choose the Right Compressed Air Pipe for Your System

Do you have leaks or pressure drops in your compressed air system? The insiders are us! Industry insiders claim that adopting the right compressed air pipes might save up to 30% of your energy costs. Find out how picking the perfect piping materials from top compressed air pipe suppliers can solve these pesky issues and keep your system running like a dream.

1. Why It’s Important to Choose the Right Compressed Air Pipe for Your System

Compressed air piping systems are the unsung heroes that keep air flowing from compressors to your gear. Installing the proper plumbing keeps everything operating efficiently and on schedule, much like having a car that never breaks down.

Imagine hitting every deadline and experiencing fewer manufacturing difficulties. Consistent air pressure is necessary for the operation of tools such as CNC machines, sanders, and air drills. Pipe selection maintains the proper airflow, reducing energy loss and saving money.

Long-lasting plumbing also reduces maintenance expenses and downtime because it needs fewer replacements and repairs. Additionally, properly built plumbing reduces the possibility of leaks and bursts, safeguarding your employees and preserving business productivity.

Smart pipe decisions, in summary, result in happier machines, safer workplaces, and cheaper expenses.

Related article

The Benefits of Having an Air Compressor and Why You Should Hire a Professional for Installation

An air compressor is a machine that takes ordinary air and compresses it into a container to create a high-pressure gas. You just have to connect a pipe or hose to the compressor to use this pressurized air to power tools, clean things, or even fill up your tires…

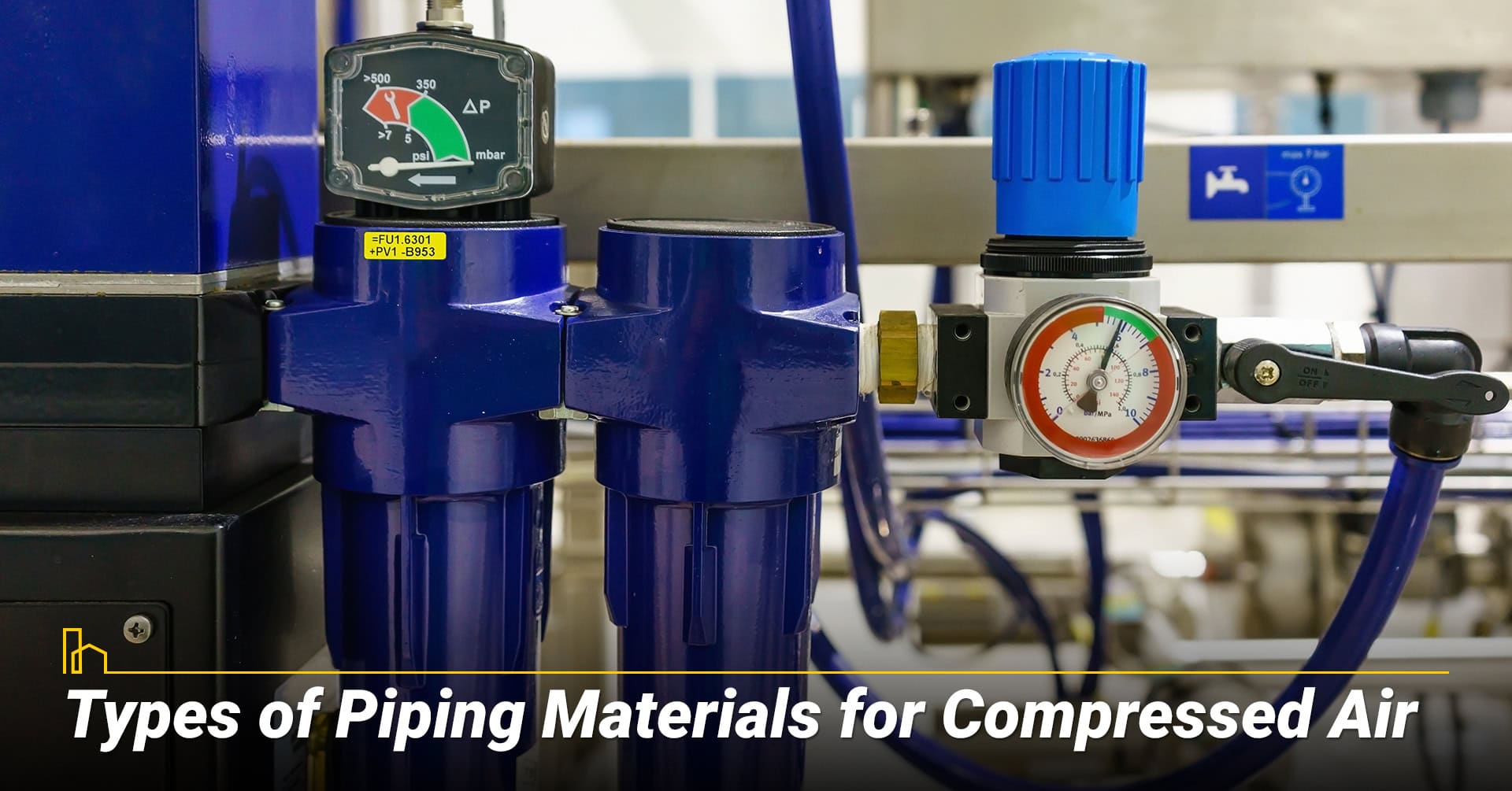

2. Types of Piping Materials for Compressed Air

Choosing the right piping material for your compressed air system is important because each type has perks and pitfalls. Knowing these can help you pick the best option for your needs. Let’s break down the types of piping materials available:

A. Stainless Steel Pipe:

Stainless steel pipes are the gold standard when you need zero risk of corrosion or degradation. Perfect for industries with strict standards like pharmaceuticals and healthcare, these pipes promise durability and reliability in even the toughest environments.

Pros:

1. No risk of corrosion or degradation
2. Ideal for stringent environments (pharmaceuticals, hospitals)
3. Approved for vacuum applications in healthcare facilities

Cons:

1. Pricey
2. Needs specialized installation

B. Aluminum Pipe:

Going with aluminum pipes for your compressed air system is a win for several reasons. They’re light, won’t rust, and are super easy to install and change. This is perfect if your facility is growing or moving. Plus, even though they cost more upfront, they save you money in the long run by being energy efficient.

Pros:

1. Lightweight and easy to install
2. No rust, smooth inside
3. Long-term efficiency and cost savings
4. Easy to reconfigure

Cons:

1. Higher initial cost

C. Galvanized Pipe:

Galvanized pipes are a popular choice, especially in the Middle East. They’re familiar to most technicians and offer some rust protection thanks to their coating. But watch out – over time, they can corrode, causing blockages and safety issues.

Pros:

1. Technicians know how to install them
2. Rust protection adds to their lifespan

Cons:

1. Can corrode over time
2. Need skilled plumbers for installation
3. Heavy and hard to handle, joints can fail

D. Copper Pipe:

Copper pipes are a top pick for medical applications because they kill germs. They’re easy to cut, weld, and hang, and most plumbers know how to work with them. But they do come with a higher price tag.

Pros:

1. No rust and easy to work with
2. Lightweight with lots of fitting options
3. Perfect for medical use

Cons:

1. More expensive

E. Plastic Pipe:

Plastic pipes are cheap and easy to install, but be careful! PVC pipes are a big no-no for compressed air systems because they can burst and become brittle over time. Using them can lead to major safety risks and hefty fines.

Pros:

1. Cheap and easy to install
2. No rust

Cons:

1. PVC is dangerous and not suitable for compressed air
2. Can burst and get brittle over time
3. Violates OSHA rules, risking fines and business shutdowns

Related article

Main Ball Valve Types and Their Uses You Should Know

In this guide, you will learn about the most common variants of ball valves, including their specifications, advantages, and applications. For those of you in the field of plumbing for homes or specialized uses, and everything in between, these valves should help to increase your knowledge of some of the ones you will come in contact with on the job…

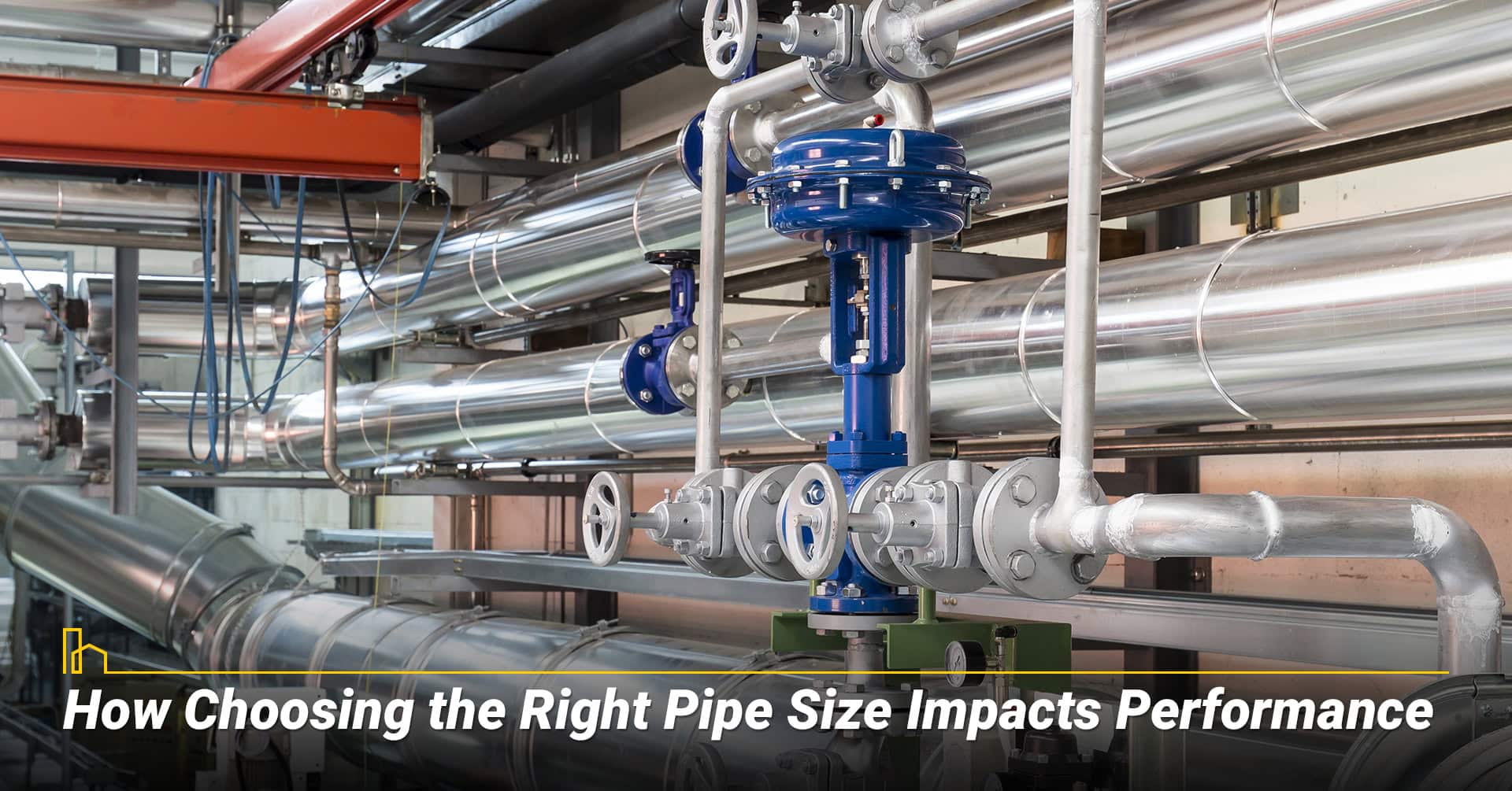

3. How Choosing the Right Pipe Size Impacts Performance

Picking the right size for your air compressor pipes is super important! You need to think about how much air you need to move and how far it needs to go. If your pipes are the wrong size, you’ll see significant drops in pressure.

A. Small Pipes = Big Problems:

If your pipes are too small, the air rubbing against the pipe walls causes a pressure drop. The smaller the pipe and the longer the distance, the worse the drop. Bends, joints, and couplings make it even worse. You might have to crank up the PSI to fix this, which costs more energy. You should aim for no more than a 3 PSI drop from the compressor to the point of use. If you have a 20 PSI drop, you’ll need to increase the system pressure to 120 PSI to keep 100 PSI at the point of use, which hikes up energy costs by 10%!

B. Big Pipes = Big Costs:

Big pipes don’t mess with performance but can cost you more money. They need more materials and are pricier to install. Plus, they store more air, which isn’t as efficient as using air receiver tanks. But if you’re planning to expand later, going a bit bigger now might save you money down the line.

C. Bottom line:

Get your pipe size right to keep things running smoothly and save on costs!

Related article

What Kind of Conduit Should be Used in a Residential Building?

Conduit is the protective, insulating tubing or casing that surrounds wires and cables of all kinds. Conduit is necessary not just to protect the wires or cables themselves, but also to protect everything and everyone around them…

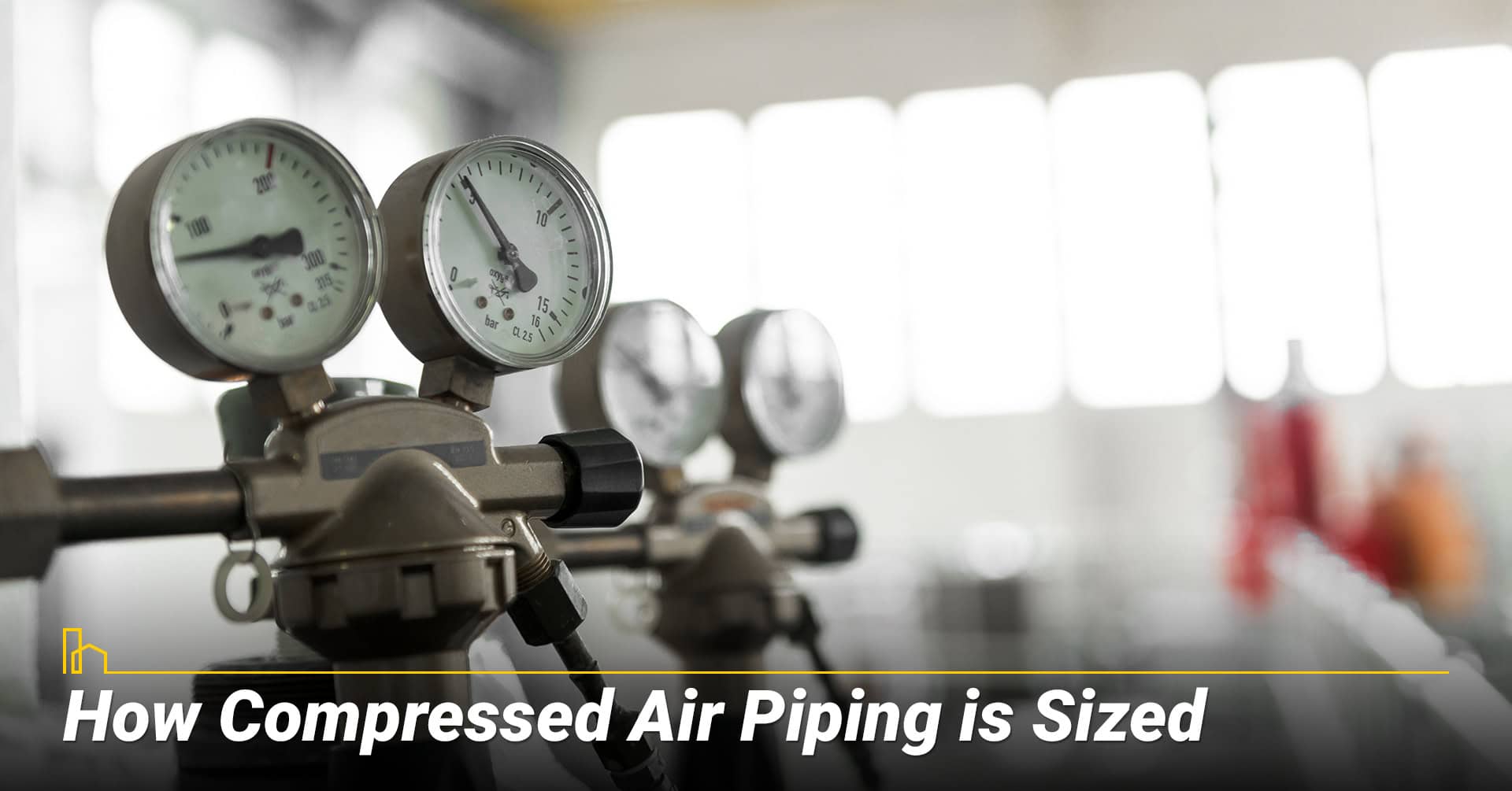

4. How Compressed Air Piping is Sized
